Brand Name : | Jointech |
Model Number : | GH-305-HMY |
Price : | Negotiable |
Payment Terms : | T/T; L/C; Western Union; Paypal |
Supply Ability : | 200000 PCS / Month |
Delivery Time : | 1-60 Days |
Certification : | ISO9001:2015 |

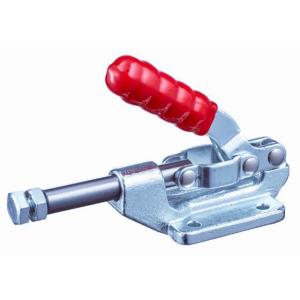

Ductile Iron Base Quick Release Push Pull Toggle Clamp With Square Handle 305HMY
Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-305-HMY
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
Weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
1600 | 680 | 60 | 180 | GH-SA-125017 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs.
Main application models: 305-HMY, 12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 305-HMY, 12130,12135,11412,302-F,36020
etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as
fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models:
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) carburetors is
used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
10. The production of various automobile (motorcycle) wiring
harness and electrical appliances is used as fixtures for testing
jigs. Some of them are also used for assembling fixtures during
assembly.
Main application models: 201,201-A,201-B,101-A etc.
11. Production of various automobile steering wheels:
1) used as fixtures for welding jigs,
Main application models: 201,201-A,201-B,101-B.
2) used as end caps for foaming molds.
Main application models: 304,305 series.
12. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
13. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
14. In the production of partially refitted auto bodies, the manual
toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.
15. Manual toggle clamps are used for local spot welding during
assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.
16. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.
2) For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.
3) For the adhesion of super-luxury bus and minibus interior
accessories, manual toggle clamps are used for adhesion and
fixation between interior accessories and auto bodies.
Main application models: F clamps.
Note: Manual toggle clamps can be used for all products or parts that are similar to the above 16 categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.
Payment:
1) We accept T/T, L/C, West Union, Paypal.
2) Payment must be made within 3 days of the confirmed order.
3) Normally the wire transfer takes around 3 days to be deposited
into our account.
About Shipping
1. Worldwide Shipping. UPS/FEDEX/DHL/EMS/TNT.
2. Orders processed timely after the payment verification.
3. We ship to confirmed order addresses. Your order address must
match your Shipping address.
4. The images shown are not the actual item and are for your
reference .
5. Service transit time is provided by the carrier and excludes
weekends and holidays. Transit times may vary, particularly during
the holiday season.
6. If you have not received your shipment within the period, please
contact us. We will track the shipment and get back to you as soon
as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship
your item from our first available warehouse for fast delivery.
8. We are not in charge of import duty, buyer is responsible for
that. Any dispute caused by this is unreasonable.
Return and Refund
1. You have 7 days to contact us and 30 days to return it from the
date it was received. If this item is in your possession more than
7 days, it is considered used and we will not issue a refund or
replacement. Shipping cost is to be bore by both seller and buyer
in half.
2. All returned items should be in the packaging and you should
provide us with the shipping tracking number, specific reason for
the return, and your PO#.
3. We will refund your full amount upon receipt of the item in its
condition and packaging with all components and accessories
included, or, you may choose to have a replacement.
About feedback
We maintain high standards of excellence and strive for 100%
customer satisfaction! Feedback is very important to us and any
comments after using will be highly appreciated!
Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
![]() |
